SFS Composite Inspection Chamber
Inspection Chamber / Manhole

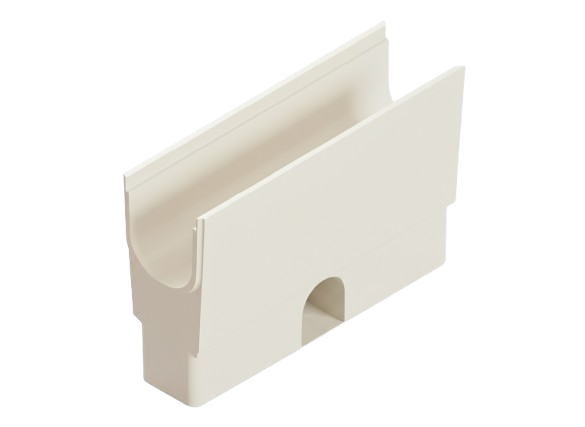

SFS Composite Inspection Chamber

High-capacity composite inspection chamber designed for the outlet points and infrastructure connections of athletics drainage lines. It provides the necessary access for the cleaning and maintenance of the channel system while allowing flexible pipe connections. With its fully composite body, it offers impermeability, longevity, and absolute protection against subsurface chemicals.

Geometry Outlet detail
Drainage Role Project based
Material COMPOSITE
System Detail Project-ready
SKU SFS-ROGAR
Product Technical Files

Download drawings, technical data sheet and installation guide for this product directly.

Technical Drawing Files

Sports Drainage Inspection Chamber

Composite Inspection Chamber for Athletics Track Drainage Outlets

The SFS Composite Inspection Chamber is placed at the outlet points of an athletics track drainage line. It connects the channel system to the site pipework and gives access for inspection, cleaning and maintenance after the track surface is finished.

Where are inspection chambers placed?

Chambers are positioned where straight, radius or sand trap channel lines discharge, and at main pipe connection points. Their number and position are set from the track layout, outlet levels and maintenance access.

Why a composite chamber?

The fully composite body is impermeable, corrosion-resistant and unaffected by subsurface chemicals, so it suits the service life of the composite channel line. Flexible pipe connections simplify coordination with the site drainage network.

Installation documents

The data sheet and installation guide on this page show the chamber geometry and installation sequence. Share outlet positions with our engineering team to confirm chamber locations.

Frequently Asked Questions

Quick answers about this product

What load class does this product support?

SFS Drain channels are designed for load class A15 (pedestrian and light traffic) per EN 1433, suitable for athletics track operating conditions. Contact our engineering team for project-specific load requirements.

What material are the channels and covers made of?

All channel bodies, covers, and inspection chambers are made from composite material. The composite structure offers light weight, corrosion resistance, and long-term performance.

What is the typical installation time?

On-site installation of a single channel unit, including placement, alignment, and haunching, takes approximately 8-12 minutes. Do not backfill until the C20/25 concrete haunching has cured.

What is the product warranty?

SFS Drain products carry a standard 2-year manufacturer warranty against defects. Under correct installation and load conditions, product life exceeds 20 years.
