ATHLETICS TRACK
DRAINAGE SYSTEMS.
FOR TRACK STRAIGHTS, BENDS AND JUMP AREAS.
SFS Drain manufactures straight and radius drainage channels, covers, inspection chambers, sand trap channels and soft-head kerbs for athletics tracks.
A COMPLETE PRODUCT FAMILY FOR ATHLETICS TRACKS
Straight and radius channels are supplied with compatible covers, inspection chambers, sand trap channels and soft-head kerbs.

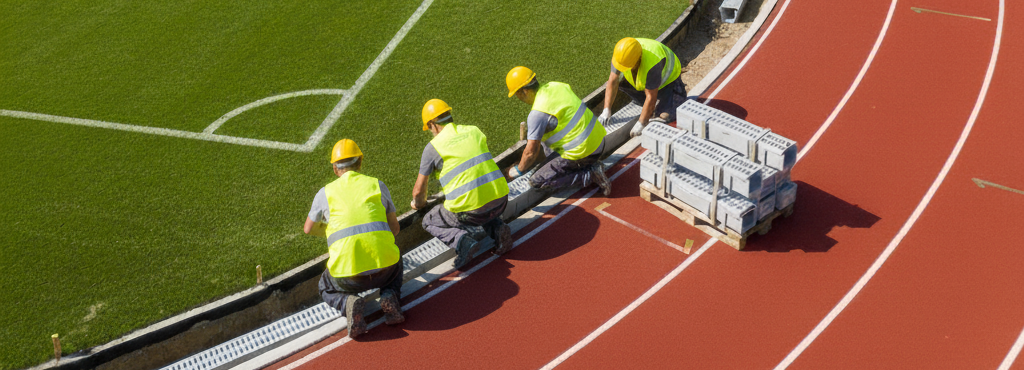

TRACK STRAIGHTS, BENDS AND JUMP AREAS
Composite Body
A lightweight, corrosion-resistant composite channel body for easier handling on site.

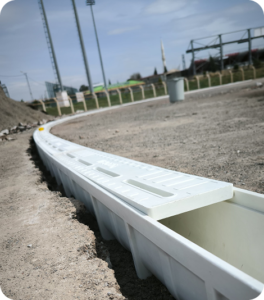

Straight and Radius Lines
Straight and radius channel sections continue the same drainage line around straights and bends.

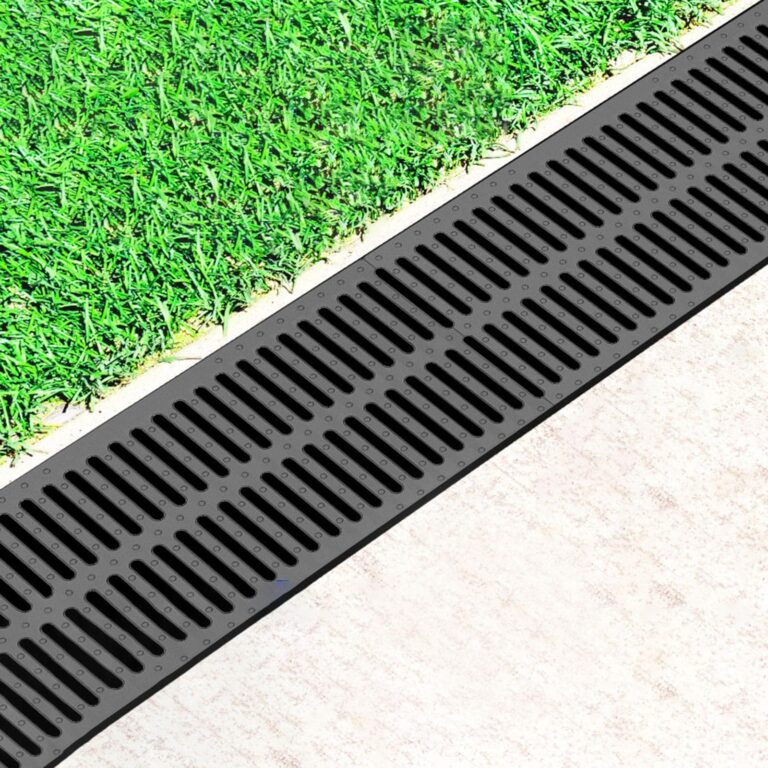

Cover and Access Details
Middle and top covers, sand trap channels and inspection chamber connections are available in the same product family.
DESIGN AND INSTALLATION BENEFITS
PRODUCT FAMILY
Core products for track straights, bends, sand pits and drainage outlets.
01
SFS Athletics Straight Channel
A composite drainage channel for collecting surface water along the straight sections of a track.
02
SFS Athletics Radius Channel
A curved composite drainage channel that follows the geometry of track bends.
03
SFS Sand Trap Channel
A cleanable channel and grating system that collects sand carried from jump pits.
04
SFS Soft-Head Kerb
A kerb with a soft upper surface intended to reduce contact risk along the track edge.
05
SFS Composite Inspection Chamber
A composite inspection chamber providing connection, inspection and cleaning access to the drainage line.
TECHNICAL PRODUCT COMPARISON
| Unit Model | Internal Width | Flow Rate (Max) | Material |
|---|---|---|---|
| SFS Athletics Straight Channelarrow_outward | NW 125 | Project based | COMPOSITE |
| SFS Athletics Radius Channelarrow_outward | NW 125 | Project based | COMPOSITE |
| SFS Athletics Straight Middle Coverarrow_outward | Fits Straight Channel | - | COMPOSITE |
| SFS Athletics Radius Middle Coverarrow_outward | Fits Radius Channel | - | COMPOSITE |
| SFS Athletics Straight Top Coverarrow_outward | Fits Straight Channel | - | COMPOSITE |
| SFS Athletics Radius Top Coverarrow_outward | Fits Radius Channel | - | COMPOSITE |
| SFS Composite Inspection Chamberarrow_outward | Outlet detail | Project based | COMPOSITE |
| SFS Sand Trap Channelarrow_outward | Sand pit edge | Project based | COMPOSITE |
| SFS Soft-Head Kerbarrow_outward | Track edge | Edge detail | SOFT COMPOSITE |
REVIEW THE TECHNICAL FILES
Certification, published application examples, data sheets, placement plans and CAD files are available in this section.
World Athletics Certification
View the certification scope and the related verification document.
VIEW CERTIFICATIONarrow_forward
Application References
Review the published project and application examples.
VIEW CASE STUDIESarrow_forwardTechnical Documentation
Access product data sheets, installation guides, placement plans and CAD drawings.
OPEN FILESarrow_forward
